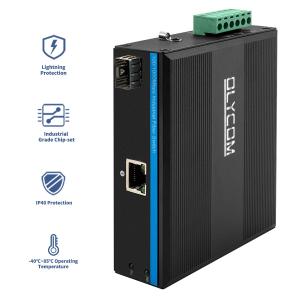

Unmanaged Industrial Gigabit Media Converter
Key Features of Rugged Media Converter
Specification of Gigabit Media Converter
| Product Name | Gigabit Industrial Fiber Media Converter |
| Model No. | IM-MC110GE |
| Port | 1x100/1000M SFP Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block |
| Switching features | Transmission mode: storage and forward
System bandwidth: 4Gbps (non-traffic jam) |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, Fiber, Network PWR: Power Fiber: FX1, FX2 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected) Copper orange: PoE indicator On:PoE is working Off:PoE is not working or this is Non-PoE device Copper green: Speed indicator On:transmission speed is 1000Mbps Blinking: in transmission Off:Disconnected or working speed is 10/100Mbps |
| Power supply | Input voltage: DC 12-85V
No-load power: 5W
Reverse connection: support |
| Safety | ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
| Warranty | 3 years |
Packaging & Delivery
- Selling Units: Single item
- Single packaging size: 22*16*6cm
- Single gross weight: 0.45kg
- Package type: One Media converter and one user manual are inside one box
- Lead Time: 3-5 working days and will change according to different quantities
FAQ of Fiber Optic Converter
Q: What is your minimum quantity?
A: We do not have MOQ., 1 sample is available.
Q: How long is the lead time?
A: Usually 3-5 days. But need to check when you process orders.
Q: Do you have CE,FCC, ROHS?
A: Yes.
Q: How do you guarantee the quality?
A: we absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment.
Dimension
Application of Industrial Fiber Switch
Photos
| OSPL1E06D-85 | 100BASE-FX(850nm) |
| OSPL1E06D | 100BASE-FX |
| OSPL1E20D | 100BASE-LX |
| OSPL1E40D | 100BASE-EX |
| OSBL1E20D-35 | 100BASE-BX-U(TX 1310 RX1550) |
| OSBL1E20D-53 | 100BASE-BX-D(TX 1550 RX1310) |
| OSPL1G05D | 1000BASE-SX |
| OSPL1G06D | 1000BASE-SX(1310nm) |
| OSPL1G20D | 1000BASE-LX |
| OSPL1G40D | 1000BASE-EX |
| OSBL1G20D-35 | 1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 | 1000BASE-BX-D(TX 1550 RX1310) |
