8 Port Poe Switches With Fiber 2 Port Sfp Din Rail Mounted Ip40 For Outdoor Use

Brand Name : OLYCOM

Model Number : IM-FP288GE

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 6000 per month

Delivery Time : 5-8 days

Packaging Details : One unit device and one user manual are inside one box , sealed and well protected.

Product Name : 8 Port Poe Gigabit Fiber Switch

PoE Ports : 8 Gigabit POE

Fiber Port : 2 SFP Fiber Port

Mounting Way : Din-Rail Mounting

Waterproof : IP40

Power Supply : 48-52VDC

Contact Now

8 Port Poe Gigabit Fiber Switch Industrial Switch With POE 2 Port SFP Din Rail Mounted IP40

Introduction of 8 Port Poe Gigabit Fiber Switch

IM-FP288GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of 8 Port Poe Gigabit Fiber Switch

  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af/at power on to 1 ~ 8RJ45 ports
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • Max power to15.4W under af standard to each PoE port
  • Detect the PoE models of electrical equipments.


Specification of 8 Port Poe Gigabit Fiber Switch

Product Name 8 Port Poe Gigabit Fiber Switch Industrial Switch With POE 2 SFP Port
Model No. IM-FP288GE
Port

2x 1000Mpbs SFP ports
SM:1310nm/1550nm,20Km
1490nm/1550nm,40~120Km
MM:1310nm,2Km
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward
System bandwidth:40Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~8)
(802.3at standards required special instructions)
Environment

Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic: EN 50121-4
Safety

CE Mark, commercial
CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell
Safety class: IP40
Dimension:158 x 114.8 x 60mm
Mounting method: Din-rail mounting
Warranty 3 years


Application of 8 Port Poe Gigabit Fiber Switch


8 Port Poe Switches With Fiber 2 Port Sfp Din Rail Mounted Ip40 For Outdoor Use

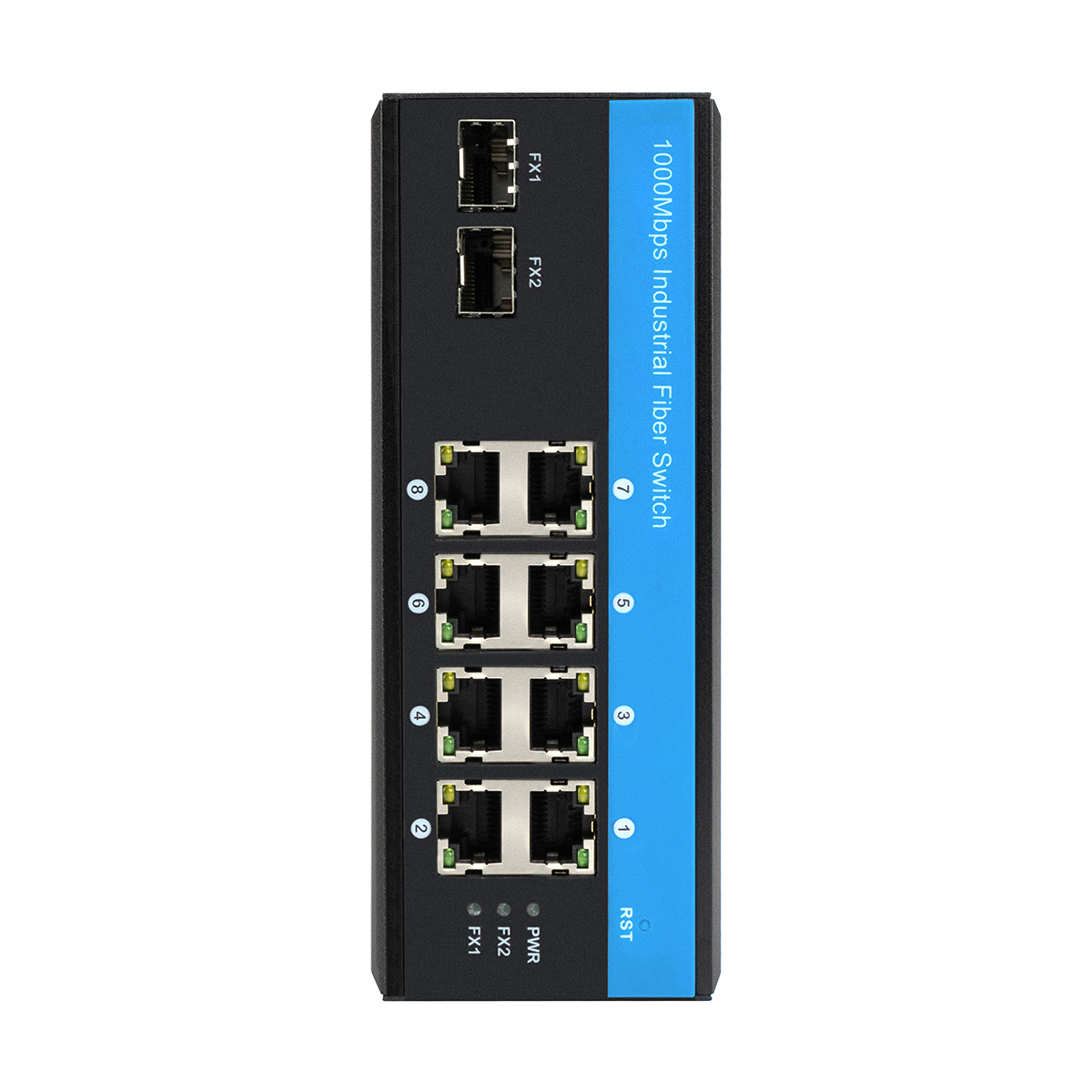

Photo of 8 Port Poe Gigabit Fiber Switch
8 Port Poe Switches With Fiber 2 Port Sfp Din Rail Mounted Ip40 For Outdoor Use
