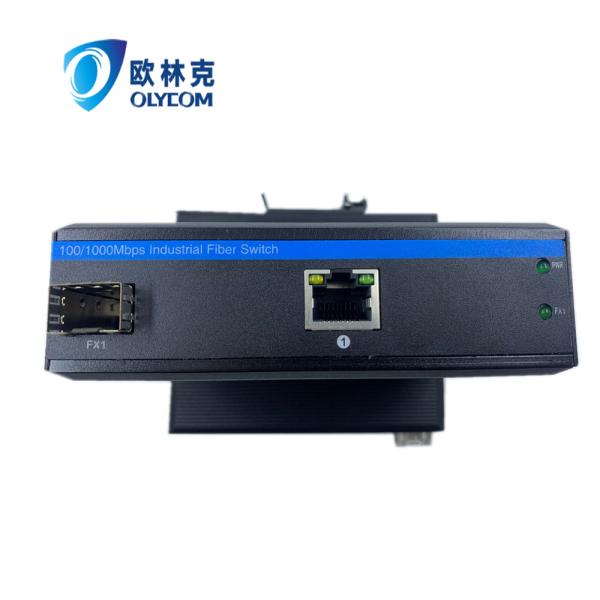

Rugged Media Converter Poe 15.4W 30W 10/100m Fast Ethernet Unmanaged Ce Din Rail

Name: Rugged Media Converter Poe 154W 30W 10100m Fast Ethernet Unmanaged Ce Din Rail
Brand: OLYCOM
Price: 1 USD

China Rugged Media Converter Poe 15.4W 30W 10/100m Fast Ethernet Unmanaged Ce Din Rail factory

Brand Name : OLYCOM

Model Number : IM-PC111FE

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, PayPal

Supply Ability : 600 per month

Delivery Time : 3-5 working days

Packaging Details : One unit device and one user manual are inside one box , sealed and well protected.

Name : 2 Port Fast Ethernet Media Converter

Ethernet : 1* 10/100Mbps RJ45 Port

Fiber : 1* 100M SFP Port

Working Temperature : -40 ~ 75℃

Function : Support POE AT/AF

Mounted Type : Din Rail or Wall Mounting

Contact Now

2 Port PoE Ethernet Media Converter

Key Features of Fiber Optic Converter

Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 RJ45 port
6KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
Max power to15.4W under af standard, 30W under at standard to each PoE port
Detect the PoE models of electrical equipments.
A store-and-forward switching mechanism

Specification of Unmanaged Media Converter

Product Name	10/100Mbps Industrial PoE Fiber Media Converter (1F+1TP)
Model No.	IM-PC111FE
Port	1 x 100Mpbs fiber port SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km 1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block
Protocol	IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3af 15.4W(PoE) IEEE 802.3at 30W(PoE+)
Switching features	Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 0.4Gbps (non-traffic jam) MAC: 4K Packet buffer size: 1.75Mb
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) Fiber port transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs	Power, Fiber, Network, PoE PWR: Power Fiber: FX1, FX2 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected) Copper orange: PoE indicator On:PoE is working Off:PoE is not working or this is Non-PoE device Copper green: Speed indicator On:transmission speed is 1000Mbps Blinking: in transmission Off:Disconnected or working speed is 10/100Mbps
Power supply	PoE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W Total budget: 30W PoE output voltage: 48V Reverse connection: support 1/2 (V+), 3/6 (V-) PoE Wiring
Environment	Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%, non-condensing Storage humidity:10%～95%, non-condensing
Industry Standards	EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4
Safety	CE Mark, commercial CE/LVD EN60950
Mechanical information	Shell: Corrugated metal shell Safety class: IP40 Dimension: 114 x 93 x 35mm Mounting method: Din-rail mounting
Warranty	3 years

Rugged Media Converter Poe 15.4W 30W 10/100m Fast Ethernet Unmanaged Ce Din Rail

Application

Rugged Media Converter Poe 15.4W 30W 10/100m Fast Ethernet Unmanaged Ce Din Rail

Accessories

Industrial SFP Transceiver
OSPL1E06D-85	100BASE-FX(850nm)
OSPL1E06D	100BASE-FX
OSPL1E20D	100BASE-LX
OSPL1E40D	100BASE-EX
OSBL1E20D-35	100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53	100BASE-BX-D(TX 1550 RX1310)
OSPL1G05D	1000BASE-SX
OSPL1G06D	1000BASE-SX(1310nm)
OSPL1G20D	1000BASE-LX
OSPL1G40D	1000BASE-EX
OSBL1G20D-35	1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53	1000BASE-BX-D(TX 1550 RX1310)
Industrial Power Adapter Din-rail
IM-DAC220/DC48V2.5A	AC220V to DC48V2.5A, -40～70℃
IM-DAC220/DC48V5A	AC220V to DC48V5A, -40～70℃
IM-DAC220/DC48V10A	AC220V to DC48V10A, -40～70℃

FAQ

1, What chip is it based?

Olycom: Realtek

2, Can I customize it?

Olycom: Yes

We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)

3, Is it managed?

Olycom: No

Its just simple plug-and-play.
